动态决策驱动的工控网络数据要素威胁检测方法

王泽鹏, 马超, 张壮壮, 吴黎兵, 石小川

王泽鹏, 马超, 张壮壮, 吴黎兵, 石小川. 动态决策驱动的工控网络数据要素威胁检测方法[J]. 计算机研究与发展, 2024, 61(10): 2404-2416. DOI: 10.7544/issn1000-1239.202440387
引用本文: 王泽鹏, 马超, 张壮壮, 吴黎兵, 石小川. 动态决策驱动的工控网络数据要素威胁检测方法[J]. 计算机研究与发展, 2024, 61(10): 2404-2416. DOI: 10.7544/issn1000-1239.202440387
Wang Zepeng, Ma Chao, Zhang Zhuangzhuang, Wu Libing, Shi Xiaochuan. Dynamic Decision-Driven Threat Detection Method for Data Elements in Industrial Control Networks[J]. Journal of Computer Research and Development, 2024, 61(10): 2404-2416. DOI: 10.7544/issn1000-1239.202440387
Citation: Wang Zepeng, Ma Chao, Zhang Zhuangzhuang, Wu Libing, Shi Xiaochuan. Dynamic Decision-Driven Threat Detection Method for Data Elements in Industrial Control Networks[J]. Journal of Computer Research and Development, 2024, 61(10): 2404-2416. DOI: 10.7544/issn1000-1239.202440387
王泽鹏, 马超, 张壮壮, 吴黎兵, 石小川. 动态决策驱动的工控网络数据要素威胁检测方法[J]. 计算机研究与发展, 2024, 61(10): 2404-2416. CSTR: 32373.14.issn1000-1239.202440387
引用本文: 王泽鹏, 马超, 张壮壮, 吴黎兵, 石小川. 动态决策驱动的工控网络数据要素威胁检测方法[J]. 计算机研究与发展, 2024, 61(10): 2404-2416. CSTR: 32373.14.issn1000-1239.202440387
Wang Zepeng, Ma Chao, Zhang Zhuangzhuang, Wu Libing, Shi Xiaochuan. Dynamic Decision-Driven Threat Detection Method for Data Elements in Industrial Control Networks[J]. Journal of Computer Research and Development, 2024, 61(10): 2404-2416. CSTR: 32373.14.issn1000-1239.202440387
Citation: Wang Zepeng, Ma Chao, Zhang Zhuangzhuang, Wu Libing, Shi Xiaochuan. Dynamic Decision-Driven Threat Detection Method for Data Elements in Industrial Control Networks[J]. Journal of Computer Research and Development, 2024, 61(10): 2404-2416. CSTR: 32373.14.issn1000-1239.202440387

动态决策驱动的工控网络数据要素威胁检测方法

基金项目: 国家重点研发计划项目(2021YFB3101100);国家自然科学基金项目(62272352);湖北省重点研发计划项目(2021BAA039);湖北省自然科学基金项目(2022CFB012)
详细信息
    作者简介:

    王泽鹏: 1999年生. 博士研究生. CCF学生会员. 主要研究方向为强化学习、异常检测、大数据分析

    马超: 1982年生. 博士,讲师. CCF会员. 主要研究方向为时间序列分析、生成式人工智能、可解释性人工智能、强化学习

    张壮壮: 1994年生. 博士. CCF学生会员. 主要研究方向为联邦学习安全、车联网安全

    吴黎兵: 1972年生. 博士,教授,博士生导师. CCF杰出会员. 主要研究方向为网络安全、物联网、机器学习、数据安全

    石小川: 1984年生. 博士,副教授,博士生导师. CCF会员. 主要研究方向为大数据分析、强化学习、深度学习、无线传感器网络

    通讯作者:

    石小川(shixiaochuan@whu.edu.cn

  • 中图分类号: TP391

Dynamic Decision-Driven Threat Detection Method for Data Elements in Industrial Control Networks

Funds: This work was supported by the National Key Research and Development Program of China (2021YFB3101100), the National Natural Science Foundation of China (62272352), the Key Research and Development Program of Hubei Province (2021BAA039), and the Natural Science Foundation of Hubei Province (2022CFB012).
More Information
    Author Bio:

    Wang Zepeng: born in 1999. PhD candidate. Student member of CCF. His main research interests include reinforcement learning, anomaly detection, and big data analysis

    Ma Chao: born in 1982. PhD, lecturer. Member of CCF. His main research interests include time series analytics, generative AI, explainable AI, and reinforcement learning

    Zhang Zhuangzhuang: born in 1994. PhD. Student member of CCF. His main research interests include federated learning security and IoV security

    Wu Libing: born in 1972. PhD, professor, PhD supervisor. Distinguished member of CCF. His main research interests include network security, Internet of things, machine learning, and data security

    Shi Xiaochuan: born in 1984. PhD, associate professor, PhD supervisor. Member of CCF. His main research interests include big data analysis, reinforcement learning, deep learning, and wireless sensor networks

  • 摘要:

    近年来,工控网络发展势头迅猛. 其数字化、智能化、自动化的优势为工业带来巨大效益的同时,也面临着愈发复杂多变的攻击威胁. 在数据要素安全的背景下,及时发现和应对工控网络威胁成为一项迫切需要得到解决的任务. 通过对工控网络中的数据流进行连续监测和分析,工控网络威胁检测问题可以转化为时间序列异常检测问题. 然而现有时间序列异常检测方法受限于工控网络数据集的质量,且往往仅对单一类型异常敏感而忽略其他异常. 针对上述问题,提出了一种基于深度强化学习和数据增强的工控网络威胁检测方法(deep reinforcement learning and data augmentation based threat detection method in industrial control networks,DELTA). 该方法提出了一种新的时序数据集数据增强选择方法,可以针对不同的基准模型选择合适的数据增强操作集以提升工控网络时间序列数据集的质量;同时使用深度强化学习算法(A2C/PPO)在不同时间点从基线模型中动态选取候选模型,以利用多种类型的异常检测模型解决单一类型异常敏感问题. 与现有时间序列异常检测模型对比的实验结果表明,在付出可接受的额外时间消耗成本下,DELTA在准确率和F1值上比所有基线模型有明显的提升,验证了方法的有效性与实用性.

    Abstract:

    In recent years, the industrial control network has been developing rapidly. The advantages of digitization, intelligence, and automation have brought significant benefits to the industry while also introducing increasingly complex and variable attack threats. In the context of data element security, timely detection and response to industrial control network threats have become an urgent task to be solved. By continuously monitoring and analyzing the data flow in industrial control networks, the problem of industrial control network threat detection can be transformed into a time series anomaly detection problem. However, the existing time-series anomaly detection methods are limited by the quality of industrial control network datasets and are often sensitive to only a single type of anomaly while ignoring other anomalies. Therefore, in this paper, we propose a deep reinforcement learning and data augmentation based threat detection method in industrial control networks (DELTA). DELTA introduces a novel data augmentation selection technique for time series datasets, which allows for the selection of appropriate data augmentation operations sets tailored to different baseline models to enhance the quality of the industrial control network time series datasets. Simultaneously, deep reinforcement learning algorithms (A2C/PPO) dynamically select candidate models from the baseline models at different time points, leveraging multiple types of anomaly detection models to address the issue of sensitivity to single-type anomalies. The experimental results compared with the existing time series anomaly detection models show that DELTA has a significant improvement in accuracy and F1 value over all baseline models at an acceptable cost of additional time consumption, which verifies the effectiveness and practicality of the method.

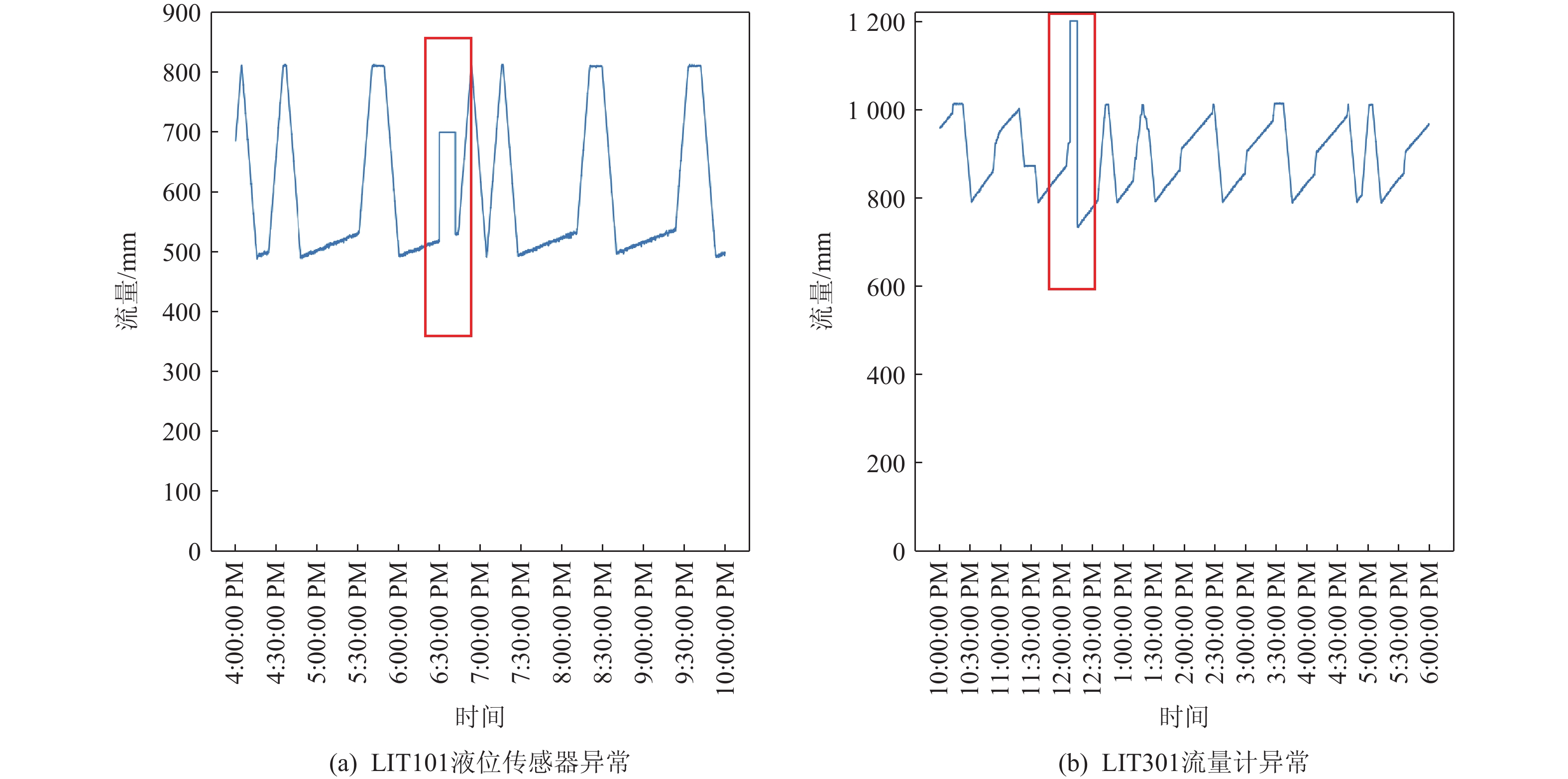

  • 图  1   SWaT数据集中的传感器异常示例

    Figure  1.   Examples of sensor exceptions in the SWaT dataset

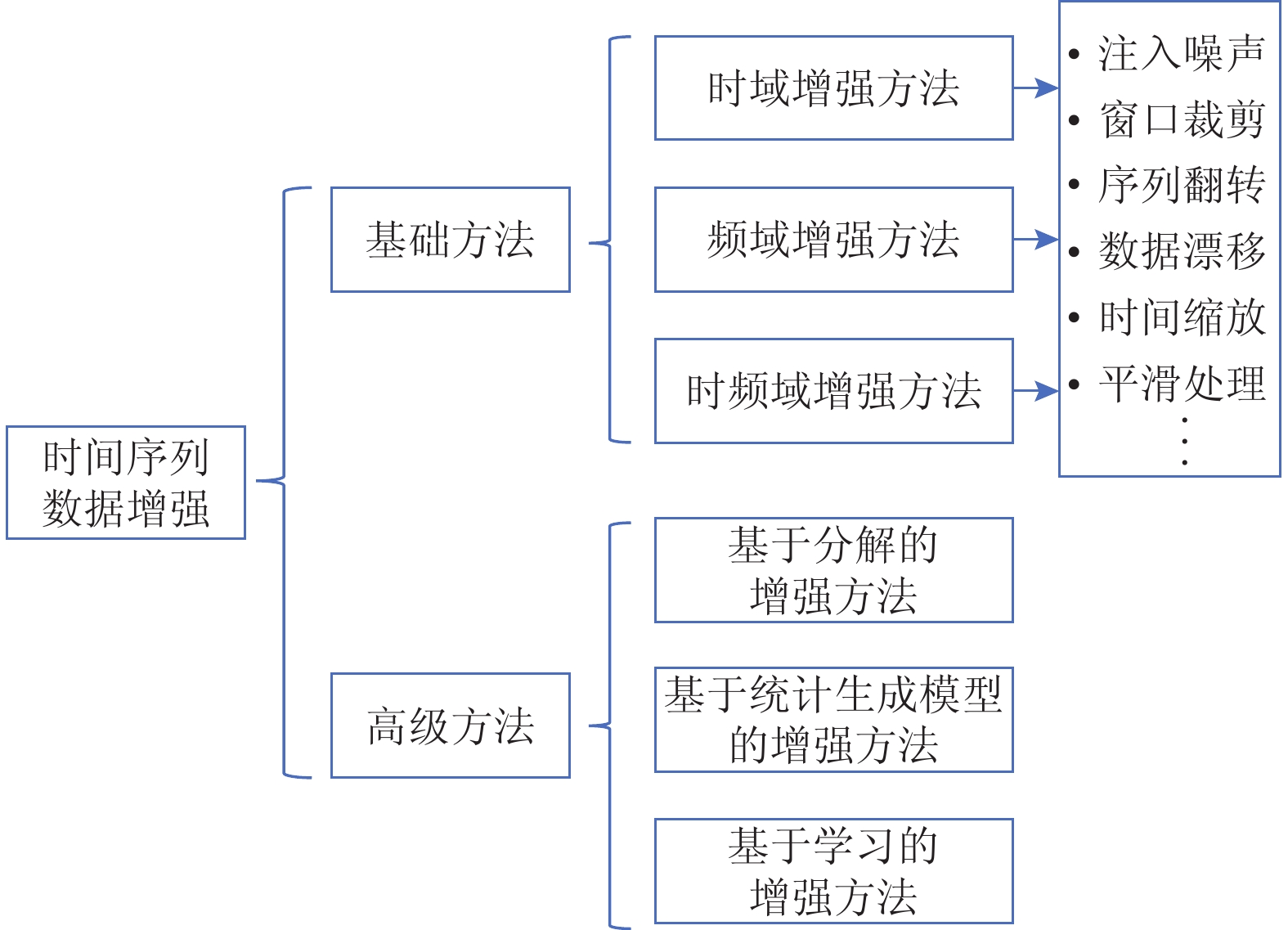

    图  2   时间序列数据增强方法分类

    Figure  2.   Classification of time series data augmentation methods

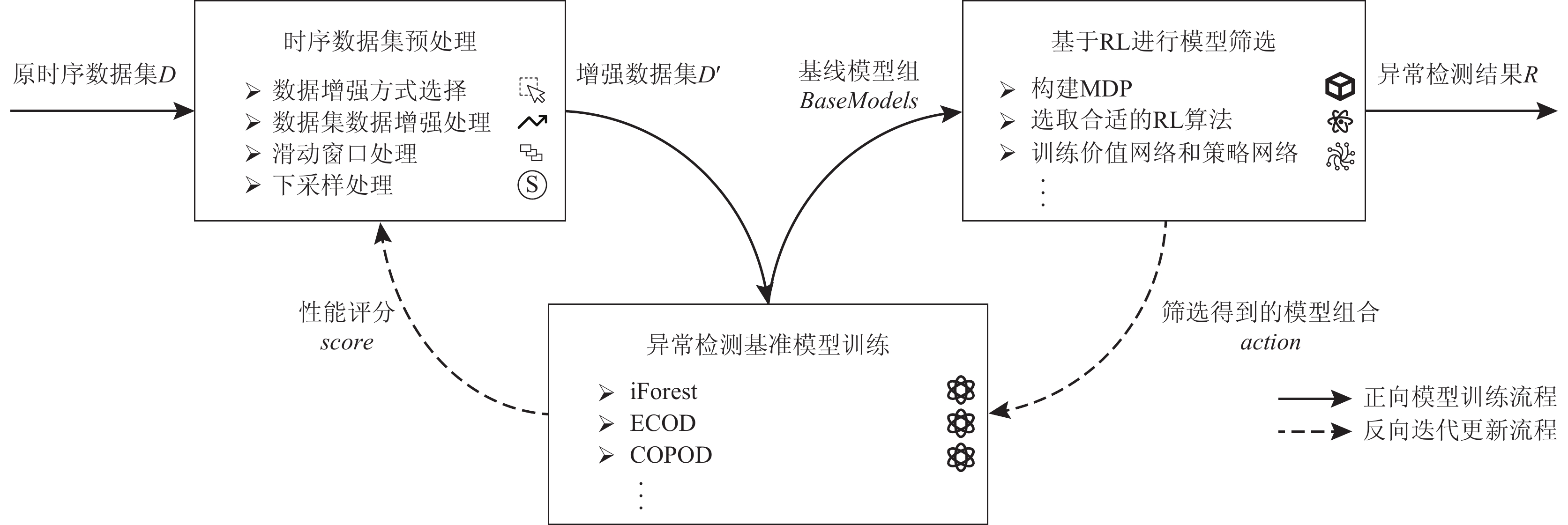

    图  3   DELTA整体框架图

    Figure  3.   Overall framework diagram of DELTA

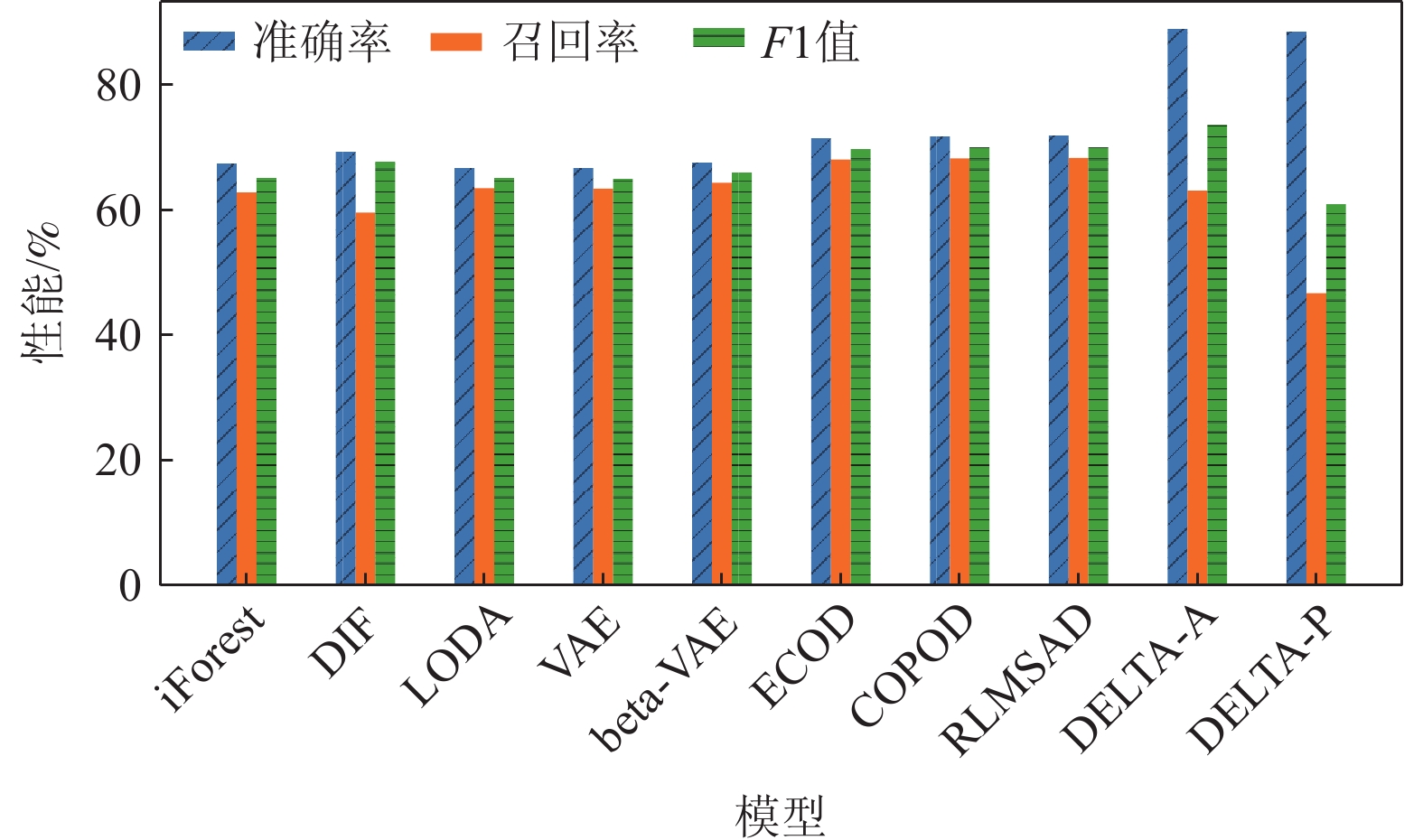

    图  4   总体性能结果

    Figure  4.   Overall performance results

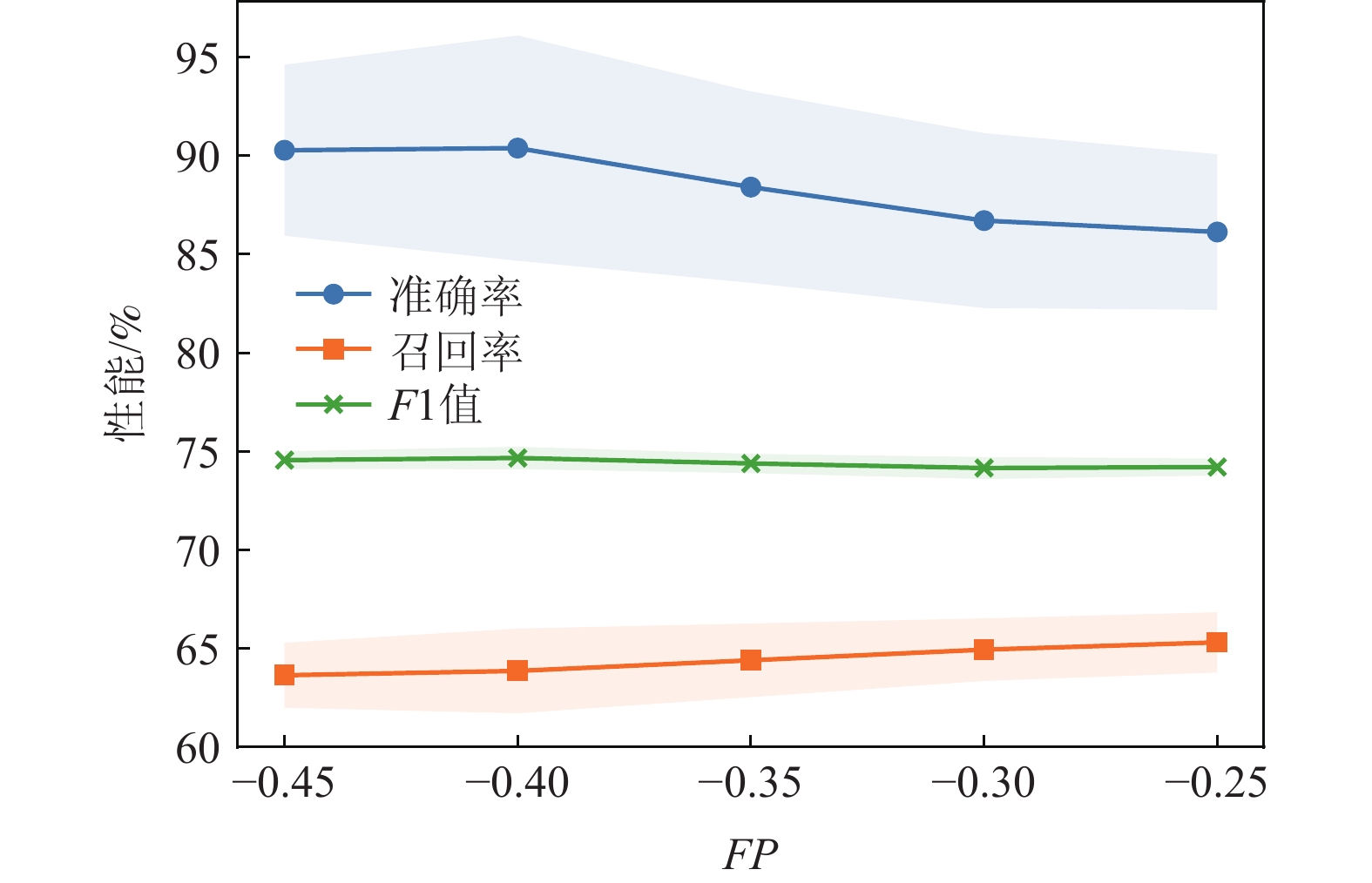

    图  5   不同FP对DELTA模型性能的影响

    Figure  5.   Impact of different FP on DELTA model’s performance

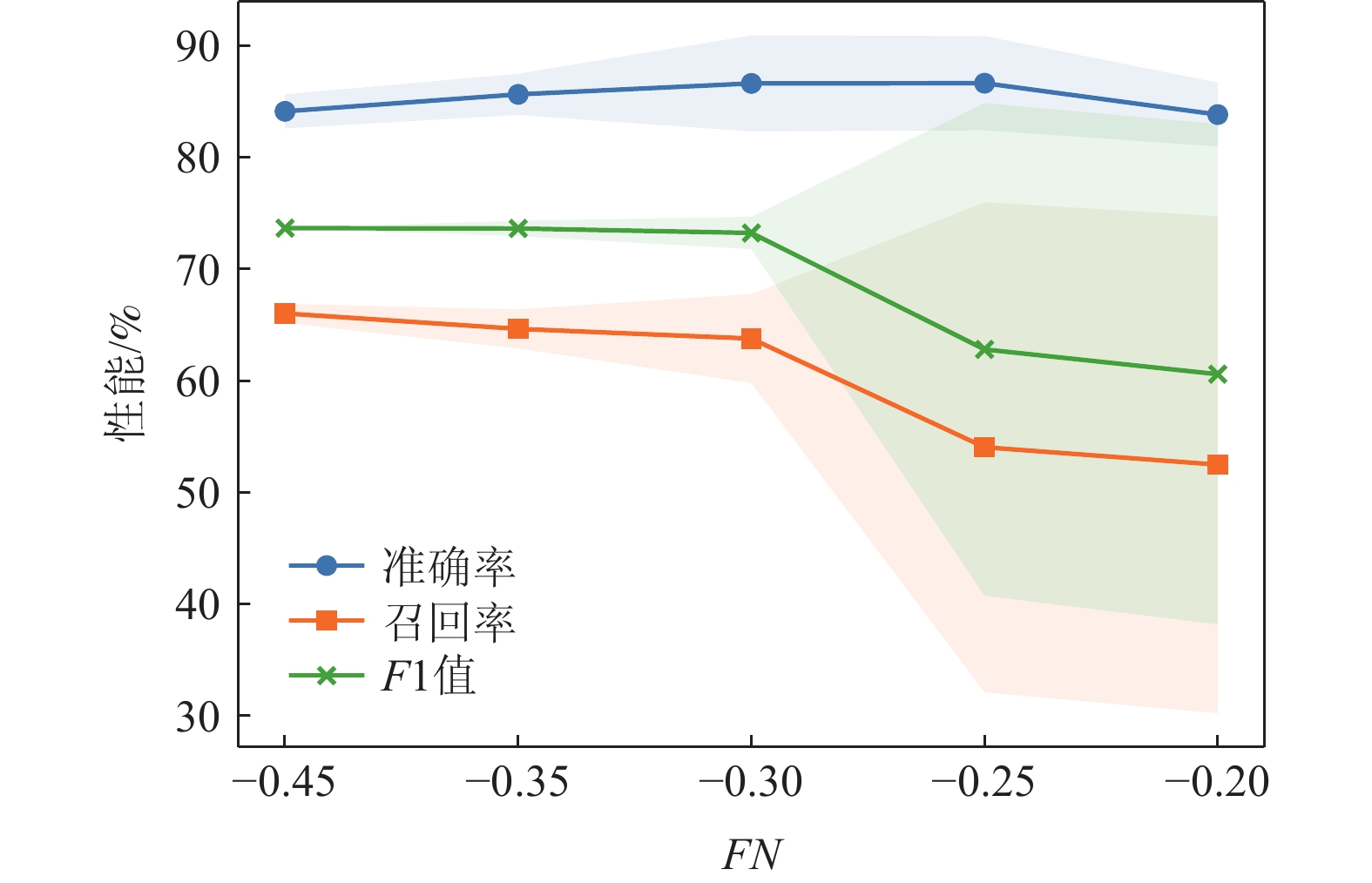

    图  6   不同FN对DELTA模型性能的影响

    Figure  6.   Impact of different FN on DELTA model’s performance

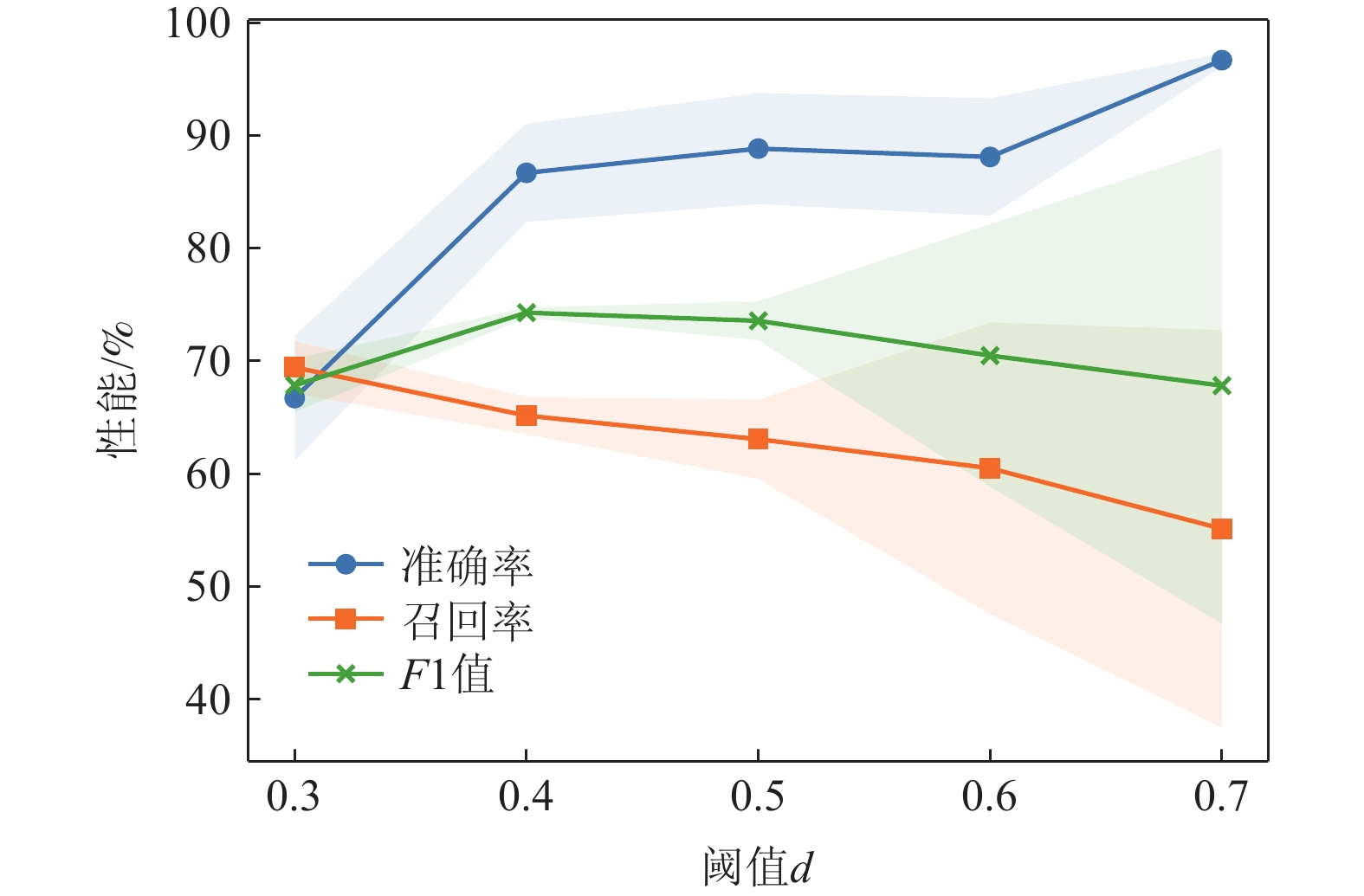

    图  7   阈值d对DELTA模型性能的影响

    Figure  7.   Impact of threshold d on the performance of DELTA model

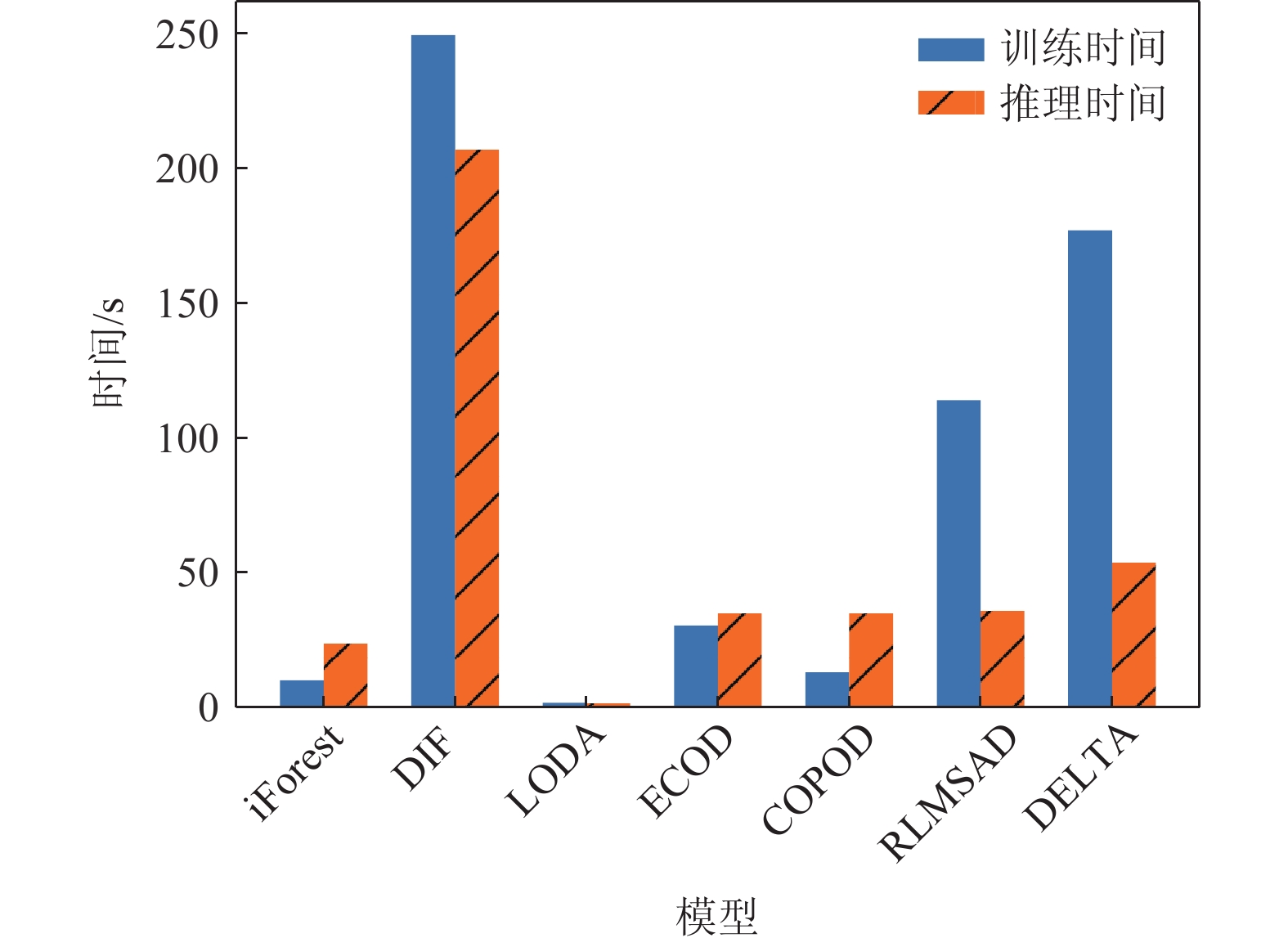

    图  8   不同模型的训练时间和推理时间对比

    Figure  8.   Comparison of training time and inference time of different models

    表  1   主要参数列表

    Table  1   List of the Major Parameters

    参数 取值
    PPO学习率 3E–4
    A2C学习率 7E–4
    折扣因子γ 0.99
    裁剪因子ε 0.2
    批次大小 64
    最大仿真步数 2048
    参数更新轮数 10
    梯度裁剪最大值 0.5
    滑动窗口值 12
    下载: 导出CSV

    表  2   总体性能结果

    Table  2   Overall Performance Results %

    模型类型 模型 准确率 召回率 F1值
    无监督学习 iForest 67.30 62.79 64.97
    DIF 69.23 59.55 67.66
    LODA 66.62 63.47 65.00
    VAE 66.55 63.40 64.94
    beta-VAE 67.53 64.33 65.89
    ECOD 71.42 68.04 69.69
    COPOD 71.62 68.23 69.88
    强化学习 RLMSAD 71.75±0.39 68.31±0.06 69.99±0.19
    DELTA-A(本文) 88.84±4.93 63.07±3.51 73.57±1.72
    DELTA-P(本文) 88.40±2.64 46.68±6.34 60.88±5.72
    注:黑体数值表示最优结果,“±”后的值表示多次实验的标准差.
    下载: 导出CSV

    表  3   数据增强模块对基准模型性能的影响

    Table  3   Impact of Data Augmentation Module on the Performance of Baseline Model %

    模型 准确率 召回率 F1值
    iForest w/o DA 67.30 62.79 64.97
    iForest 69.69 66.39 68.00
    DIF w/o DA 69.23 59.55 67.66
    DIF 69.70 66.40 68.01
    ECOD w/o DA 71.42 68.04 69.69
    ECOD 72.22 68.81 70.47
    COPOD w/o DA 71.62 68.23 69.88
    COPOD 72.03 68.62 70.28
    注:黑体数值表示最优结果.
    下载: 导出CSV

    表  4   数据增强模块对DELTA模型性能的影响

    Table  4   Impact of Data Augmentation Module on the Performance of DELTA Model %

    模型 准确率 召回率 F1值
    DELTA-A 88.84±4.93 63.07±3.51 73.57±1.72
    DELTA-A w/o DA 87.44±7.34 55.04±18.75 64.51±20.27
    DELTA-P 88.40±2.64 46.68±6.34 60.88±5.72
    DELTA-P w/o DA 85.30±3.50 44.15±14.28 56.93±13.62
    注:黑体数值表示最优结果,“±”后的值表示多次实验的标准差.
    下载: 导出CSV
