基于自适应<i>k</i>近邻的时间序列异常模式识别

王玲; 周南; 申鹏

doi:10.7544/issn1000-1239.202111062

基于自适应k近邻的时间序列异常模式识别

北京科技大学自动化学院　北京　100083
工业过程知识自动化教育部重点实验室（北京科技大学）　北京　100083

基金项目: 国家自然科学基金项目（62076025, 61572073）

详细信息

作者简介:
王玲: 1974年生.博士，教授.主要研究方向为数据挖掘和机器学习

周南: 1997年生.硕士.主要研究方向为数据挖掘

申鹏: 2000年生.硕士研究生.主要研究方向为数据挖掘

中图分类号: TP391
计量
- 文章访问数: 221
- HTML全文浏览量: 37
- PDF下载量: 147
出版历程
- 收稿日期: 2021-10-26
- 修回日期: 2022-06-06
- 网络出版日期: 2023-02-10
- 刊出日期: 2022-12-31

Time Series Anomaly Pattern Recognition Based on Adaptive k Nearest Neighbor

School of Automation and Electrical Engineering, University of Science and Technology Beijing, Beijing 100083
Key Laboratory of Knowledge Automation for Industrial Processes(University of Science and Technology Beijing), Ministry of Education, Beijing 100083

Funds: This work was supported by the National Natural Science Foundation of China (62076025, 61572073).

摘要

摘要:
时间序列作为数据的典型代表，被广泛应用于许多研究领域. 时间序列异常模式代表了一种特殊情况的出现，在许多领域都具有重要意义. 现有的时间序列异常模式识别算法大多只是单纯检测异常子序列，忽略了异常子序列的类别区分问题，且许多参数都需要人为设置.为此提出了一种基于自适应k近邻的异常模式识别算法(anomaly pattern recognition algorithm based on adaptive k nearest neighbor, APAKN). 首先，确定各子序列的自适应k近邻值，引入自适应距离比计算子序列的相对密度,确定异常分数；然后提出一种基于最小方差的自适应阈值方法确定异常阈值，检测出所有异常子序列；最后，对异常子序列进行聚类，所得聚类中心即为具有不同变化趋势的异常模式. 整个算法过程在无需设置任何参数的情况下，不仅解决了密度不平衡问题，还精简了传统基于密度异常子序列检测算法的步骤，实现良好的异常模式识别效果. 在时间序列数据集合UCR的10个数据集上的实验结果表明, 提出算法在无需设置参数的情况下，在异常子序列检测和异常子序列聚类问题中都表现良好.
- 时间序列 /
- 异常子序列 /
- 异常模式 /
- 自适应k近邻 /
- 相对密度
Abstract:
As a typical representative of data, time series is widely used in many research fields. The time series anomaly pattern represents the emergence of a special situation, and is of great significance in many fields. Most of the existing time series anomaly pattern recognition algorithms simply detect anomaly subsequences, ignoring the problem of distinguishing the types of anomaly subsequences, and many parameters need to be set manually. In this paper, an anomaly pattern recognition algorithm based on adaptive k nearest neighbor(APAKN) is proposed. Firstly, the adaptive neighbor value k of each subsequence is determined, and an adaptive distance ratio is introduced to calculate the relative density of the subsequence to determine the anomaly score. Then, an adaptive threshold method based on minimum variance is proposed to determine the anomaly threshold and detect all anomaly subsequences. Finally, the anomaly subsequences are clustered, and the obtained cluster centers are anomaly patterns with different changing trends. The whole algorithm process not only solves the density imbalance problem without setting any parameters, but also simplifies the steps of the traditional density-based anomaly subsequence detection algorithm to achieve a good anomaly pattern recognition effect. Experimental results on the 10 data sets of UCR show that the proposed algorithm performs well in detecting anomaly subsequences and clustering anomaly subsequences without setting parameters.
- time series /
- anomaly subsequences /
- anomaly pattern /
- adaptive k nearest neighbor /
- relative density

HTML全文

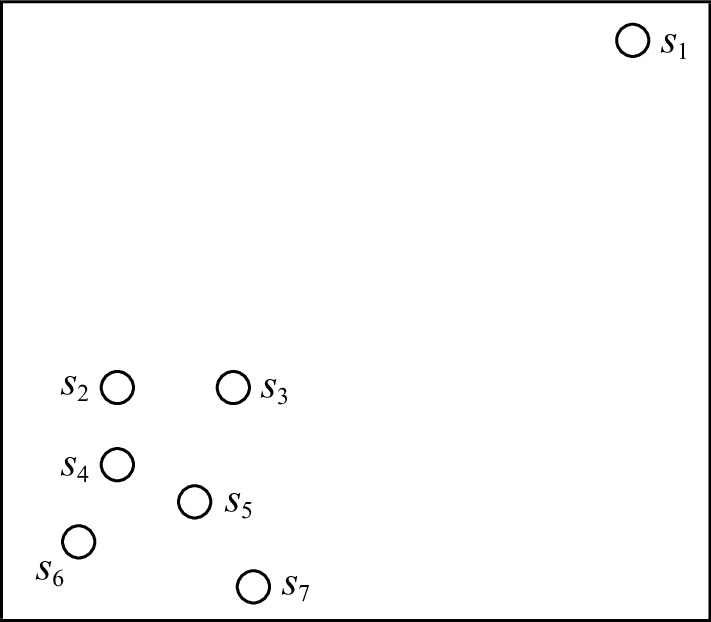

图 1 子序列分布示意图

Figure 1. Schematic diagram of subsequence distribution

下载: 全尺寸图片幻灯片

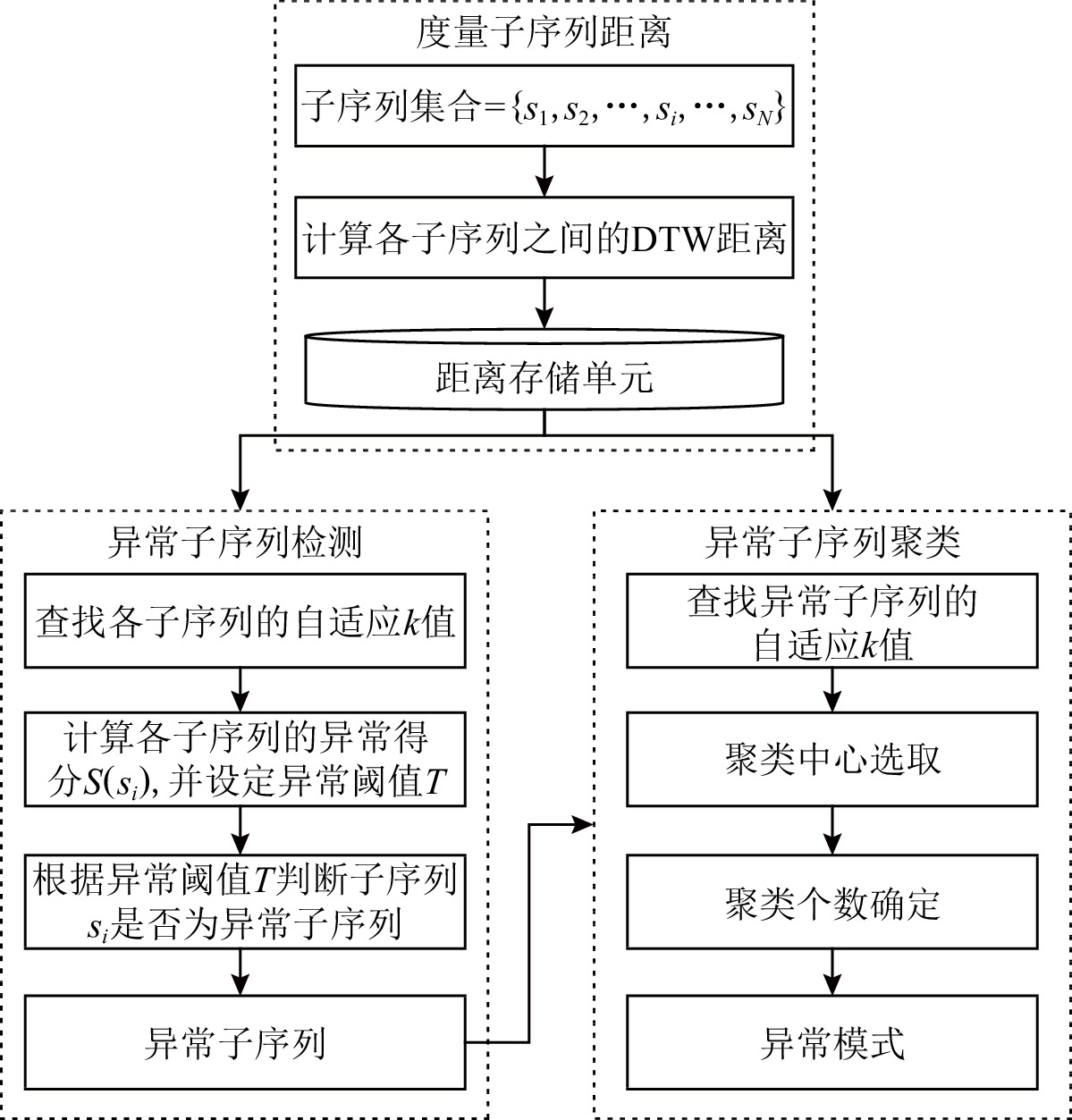

图 2 APAKN的总体工作流程

Figure 2. The overall workflow of the APAKN

下载: 全尺寸图片幻灯片

图 3 子序列在不同 $r$ 值时的近邻情况

Figure 3. Neighbors of subsequences at different values of $r$

下载: 全尺寸图片幻灯片

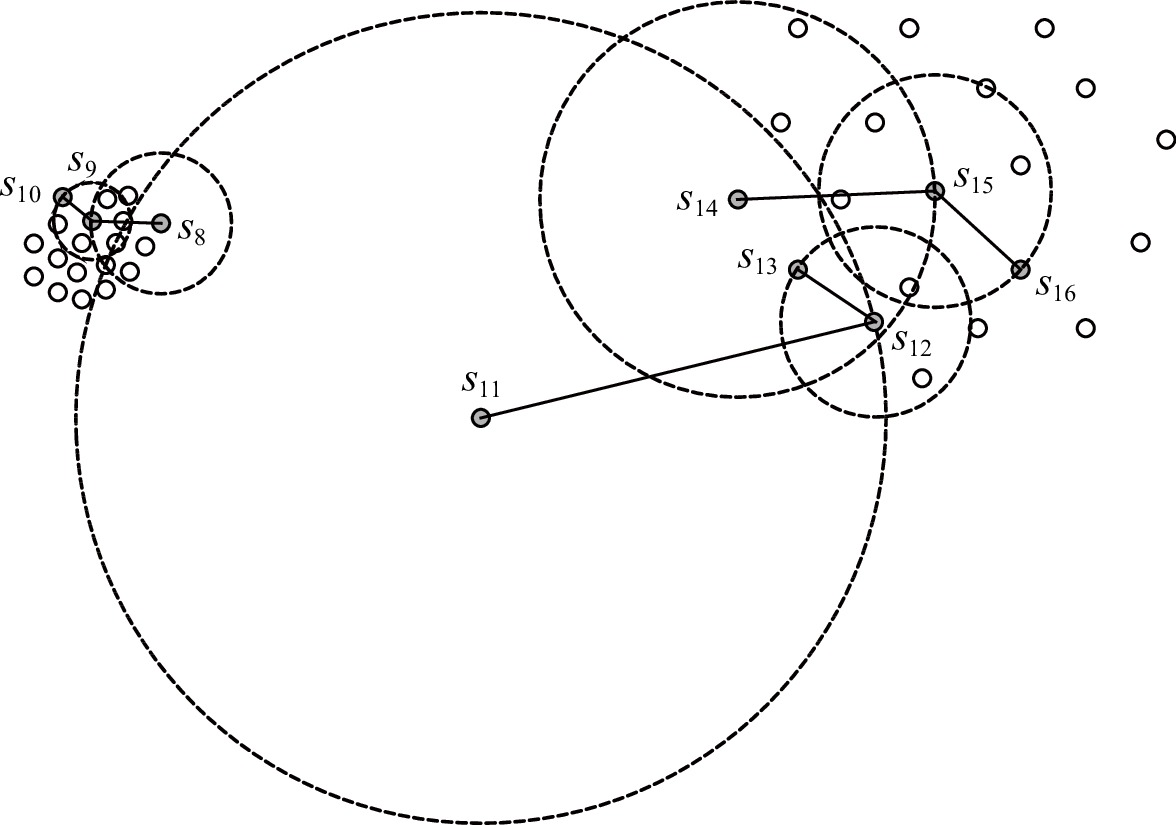

图 4 密度不平衡数据

Figure 4. Density imbalance data

下载: 全尺寸图片幻灯片

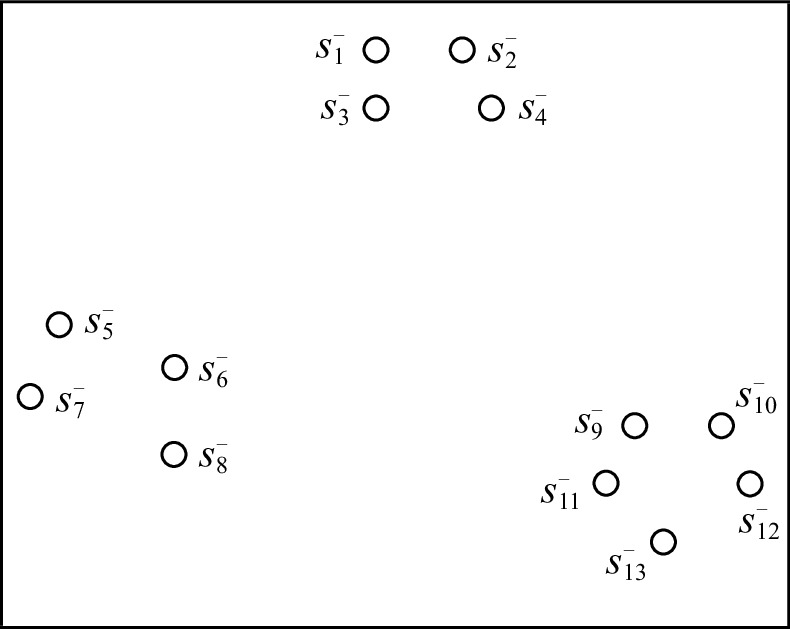

图 5 异常子序列分布示意图

Figure 5. Schematic diagram of anomaly subsequence distribution

下载: 全尺寸图片幻灯片

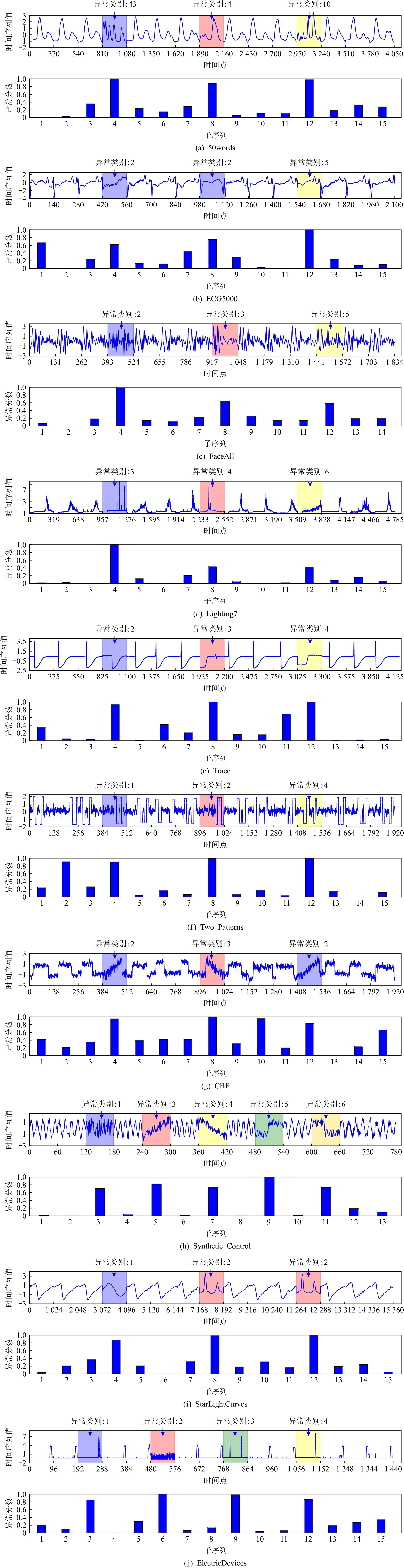

图 6 UCR部分时间子序列及其异常得分

Figure 6. UCR partial time subsequences and anomaly scores

下载: 全尺寸图片幻灯片

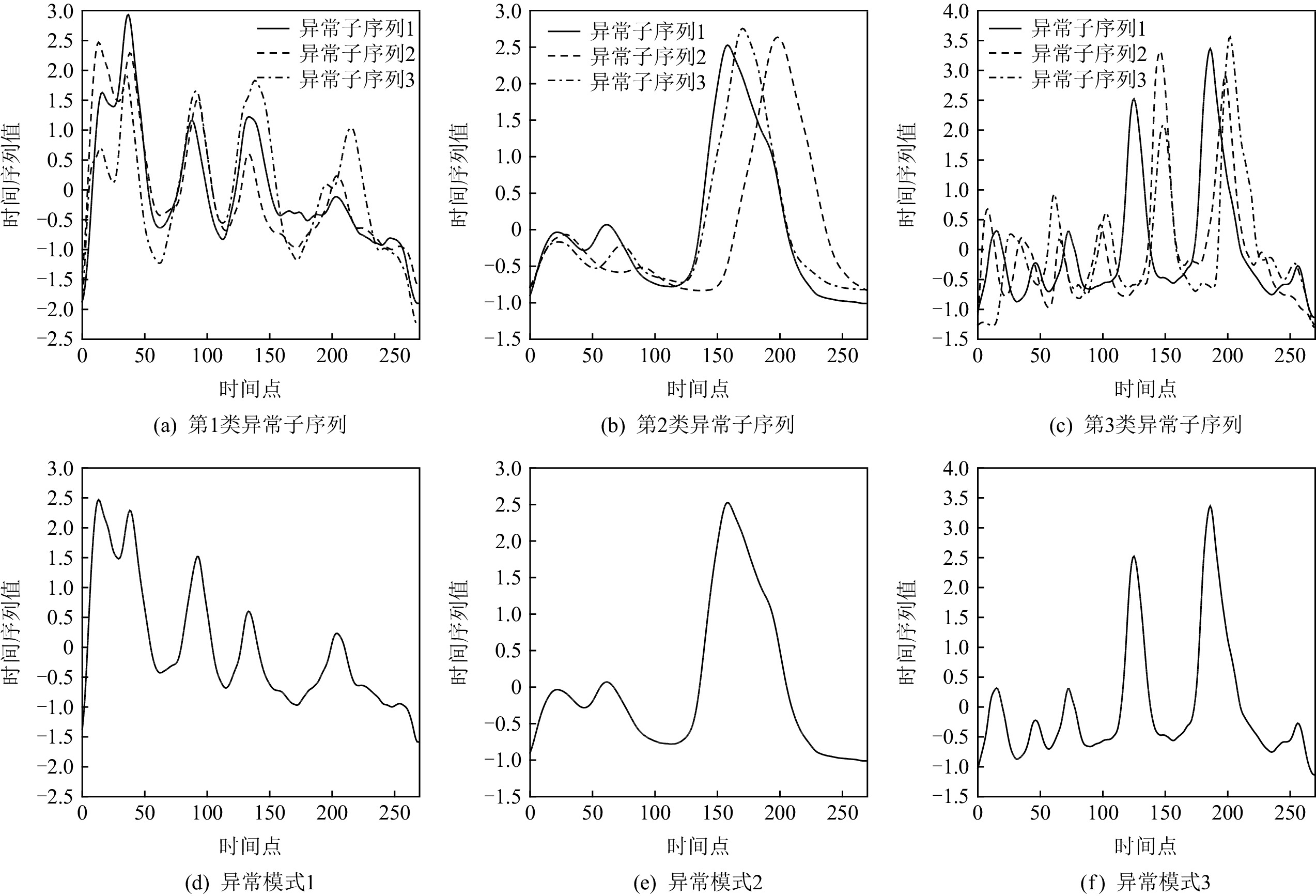

图 7 50words数据集在不同类别下的异常子序列示例和异常模式

Figure 7. Examples of anomaly subsequences and anomaly patterns in different categories of the 50words dataset

下载: 全尺寸图片幻灯片

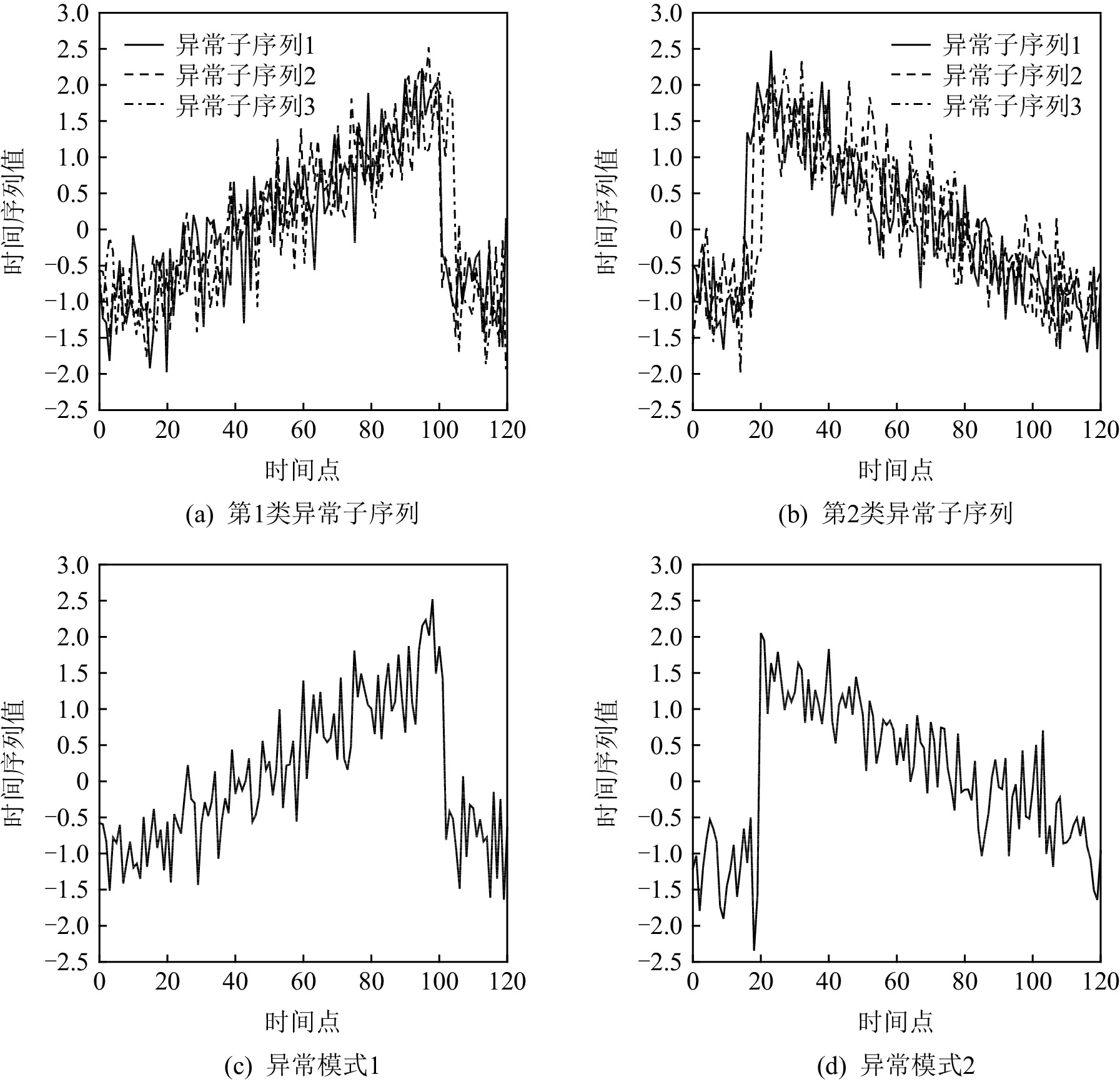

图 8 CBF数据集在不同类别下的异常子序列示例和异常模式

Figure 8. Examples of anomaly subsequences and anomaly patterns in different categories of the CBF dataset

下载: 全尺寸图片幻灯片

表 1 k = 4时子序列的k近邻域与反向k近邻域

Table 1 k Near Neighbors Domain and Reverse k Near Neighbors Domain of Subsequences when k = 4

子序列	$k$ 近邻域	反向 $k$ 近邻域	反向 $k$ 近邻个数
${s}_{1}$	$\left\{{s}_{3},{\text{s}}_{2},{\text{s}}_{5},{\text{s}}_{4}\right\}$	$\mathrm{\varnothing }$	0
${s}_{2}$	$\left\{{s}_{4},{\text{s}}_{3},{\text{s}}_{5},{\text{s}}_{6}\right\}$	$\left\{{s}_{1},{\text{s}}_{3},{\text{s}}_{4},{\text{s}}_{6}\right\}$	4
${s}_{3}$	$\left\{{s}_{2},{\text{s}}_{5},{\text{s}}_{4},{\text{s}}_{7}\right\}$	$\left\{{s}_{1},{\text{s}}_{2},{\text{s}}_{4},{\text{s}}_{5},{\text{s}}_{7}\right\}$	5
${s}_{4}$	$\left\{{s}_{2},{\text{s}}_{5},{\text{s}}_{6},{\text{s}}_{3}\right\}$	$\left\{{s}_{1},{\text{s}}_{2},{\text{s}}_{3},{\text{s}}_{5},{\text{s}}_{6},{\text{s}}_{7}\right\}$	6
${s}_{5}$	$\left\{{s}_{4},{\text{s}}_{7},{\text{s}}_{3},{\text{s}}_{6}\right\}$	$\left\{{s}_{1},{\text{s}}_{2},{\text{s}}_{3},{\text{s}}_{4},{\text{s}}_{6},{\text{s}}_{7}\right\}$	6
${s}_{6}$	$\left\{{s}_{4},{\text{s}}_{5},{\text{s}}_{2},{\text{s}}_{7}\right\}$	$\left\{{s}_{2},{\text{s}}_{4},{\text{s}}_{5},{\text{s}}_{7}\right\}$	4
${s}_{7}$	$\left\{{s}_{5},{\text{s}}_{6},{\text{s}}_{4},{\text{s}}_{3}\right\}$	$\left\{{s}_{3},{\text{s}}_{5},{\text{s}}_{6}\right\}$	3

下载: 导出CSV

表 2 s₈, s₁₁, s₁₄相对于其第8近邻的自适应距离比

Table 2 Adaptive Distance Ratio of s₈, s₁₁, s₁₄ Relative to Its 8th Nearest Neighbor

子序列 ${s}_{i}$	${s}_{i}$ 第8近邻 ${s}_{i}^{8}$	${s}_{i}^{8}$ 自适应 $k$ 近邻值 ${k}_{i}^{8}$	${s}_{i}^{8}$ 的第 ${k}_{i}^{8}$ 近邻	自适应距离比
${s}_{8}$	${s}_{9}$	6	${s}_{10}$	$adr\left({s}_{8},{s}_{9}\right)=\dfrac{{d}_{\text{dtw}}\left({s}_{8},{s}_{9}\right)}{{d}_{\text{dtw}}\left({s}_{9},{s}_{10}\right)}=1.833$
${s}_{11}$	${s}_{12}$	3	${s}_{13}$	$adr\left({s}_{11},{s}_{12}\right)=\dfrac{{d}_{\text{dtw}}\left({s}_{11},{s}_{12}\right)}{{d}_{\text{dtw}}\left({s}_{12},{s}_{13}\right)}=4.266$
${s}_{14}$	${s}_{15}$	6	${s}_{16}$	$adr\left({s}_{14},{s}_{15}\right)=\dfrac{{d}_{\text{dtw}}\left({s}_{14},{s}_{15}\right)}{{d}_{\text{dtw}}\left({s}_{15},{s}_{16}\right)}=1.722$

下载: 导出CSV

表 3 实验数据集

Table 3 Experimental Data Sets

数据集	子序列长度	类别个数	正常类别号	异常类别号	子序列个数	异常率/%
50words	270	50	2	4 $,$ 10 $,$ 43	905	20
ECG5000	140	5	1	2 $,$ 5	5000	10
FaceAll	131	14	1	2 $,$ 3 $,$ 5	2250	15
Lighting7	319	7	5	3 $,$ 4 $,$ 6	143	35
Trace	275	4	1	2 $,$ 3 $,$ 4	200	30
Two_Patterns	128	4	3	1 $,$ 2 $,$ 4	1114	13
CBF	128	3	1	2 $,$ 3	930	18
Synthetic_Control	60	6	2	1 $,$ 3 $,$ 4 $,$ 5 $,$ 6	600	25
StarLightCurves	1024	3	3	1 $,$ 2	9236	7
ElectricDevices	96	7	5	1 $,$ 2 $,$ 3 $,$ 4	16637	2

下载: 导出CSV

表 4 APAKN的 ${\mathit{k}}_{\mathit{m}}$ 值和对比算法的最佳参数值

Table 4 ${\mathit{k}}_{\mathit{m}}$ Value of APAKN and the Optimal Parameter Values of Comparison Algorithms

数据集	APAKN	DBAD	SFO	DLDE
数据集	${k}_{m}$	${t}_{\text{opt}}$	${k}_{\text{opt}}$	${h}_{\text{opt}}$
50words	18	25	9	24
ECG5000	39	31	29	30
FaceAll	25	20	9	15
Lighting7	17	15	16	15
Trace	15	11	10	16
Two_Patterns	54	27	14	18
CBF	66	33	17	30
Synthetic_Control	24	16	11	10
StarLightCurves	74	86	78	59
ElectricDevices	156	91	153	88

下载: 导出CSV

表 5 各算法在 10 个数据集上的精确率和召回率对比

Table 5 Comparison of Accuracy and Recall of Each Algorithm on 10 Data Sets

数据集	APAKN		DBAD		SFO		DLDE
数据集	精确率	召回率	精确率	召回率	精确率	召回率	精确率	召回率
50words	1.000	1.000	0.845	0.742	0.462	1.000	1.000	0.673
ECG5000	0.896	0.875	0.663	0.619	0.650	1.000	0.852	0.642
FaceAll	0.912	1.000	0.796	0.842	0.857	1.000	0.743	0.685
Lighting7	1.000	0.917	0.874	0.903	0.579	0.917	0.845	0.683
Trace	0.923	1.000	0.911	1.000	0.727	0.667	1.000	0.967
Two_Patterns	0.954	0.991	0.852	0.800	0.444	0.533	0.845	0.667
CBF	1.000	1.000	0.860	0.914	0.558	1.000	1.000	0.772
Synthetic_Control	1.000	1.000	0.757	0.637	0.735	1.000	1.000	0.700
StarLightCurves	0.912	0.896	0.912	0.845	0.774	0.685	0.875	0.689
ElectricDevices	0.923	0.851	0.845	0.798	0.855	0.762	0.796	0.744
注：黑体数值表示最佳值.

下载: 导出CSV

表 6 各算法在 10 个数据集上的准确率和F值对比

Table 6 Comparison of Accuracy and F Value of Each Algorithm on 10 Data Sets

数据集	APAKN		DBAD		SFO		DLDE
数据集	准确率	F值	准确率	F值	准确率	F值	准确率	F值
50words	1.000	1.000	0.914	0.790	0.851	0.632	0.901	0.805
ECG5000	0.996	0.885	0.923	0.640	0.973	0.788	0.865	0.732
FaceAll	0.980	0.953	0.802	0.818	0.961	0.923	0.993	0.713
Lighting7	0.974	0.957	0.826	0.888	0.769	0.710	0.875	0.755
Trace	0.971	0.960	0.871	0.953	0.800	0.696	0.963	0.983
Two_Patterns	1.000	0.972	0.836	0.825	0.876	0.485	0.896	0.746
CBF	1.000	1.000	0.931	0.886	0.940	0.716	0.875	0.871
Synthetic_Control	1.000	1.000	0.860	0.691	0.880	0.847	0.698	0.823
StarLightCurves	0.895	0.904	0.889	0.877	0.852	0.727	0.857	0.771
ElectricDevices	0.924	0.886	0.852	0.821	0.824	0.806	0.869	0.769
注：黑体数值表示最佳值.

下载: 导出CSV

表 7 各算法在 10 个数据集上的ARI和NMI对比

Table 7 Comparison of ARI and NMI of Each Algorithm on 10 Data Sets

数据集	APAKN		kmlShape		DDC		KShape
数据集	${E}_{\mathrm{A}\mathrm{R}\mathrm{I}}$	${E}_{\mathrm{N}\mathrm{M}\mathrm{I}}$	${E}_{\mathrm{A}\mathrm{R}\mathrm{I}}$	${E}_{\mathrm{N}\mathrm{M}\mathrm{I}}$	${E}_{\mathrm{A}\mathrm{R}\mathrm{I}}$	${E}_{\mathrm{N}\mathrm{M}\mathrm{I}}$	${E}_{\mathrm{A}\mathrm{R}\mathrm{I}}$	${E}_{\mathrm{N}\mathrm{M}\mathrm{I}}$
50words	0.814	0.825	0.562	0.528	0.524	0.658	0.752	0.635
ECG5000	0.827	0.768	0.662	0.612	0.586	0.693	0.825	0.698
FaceAll	1.000	1.000	0.814	0.802	0.725	0.547	0.408	0.662
Lighting7	0.836	0.905	0.635	0.620	0.433	0.623	0.689	0.814
Trace	0.522	0.734	0.586	0.532	0.425	0.389	0.368	0.647
Two_Patterns	1.000	1.000	0.633	0.396	0.362	0.412	0.453	0.504
CBF	0.925	0.814	0.755	0.852	0.615	0.578	0.847	0.689
Synthetic_Control	0.457	0.667	0.643	0.614	0.303	0.339	0.478	0.713
StarLightCurves	0.956	0.756	0.789	0.812	0.546	0.632	0.874	0.684
ElectricDevices	0.857	0.859	0.478	0.532	0.722	0.566	0.647	0.684
注：黑体数值表示最佳值.

下载: 导出CSV
